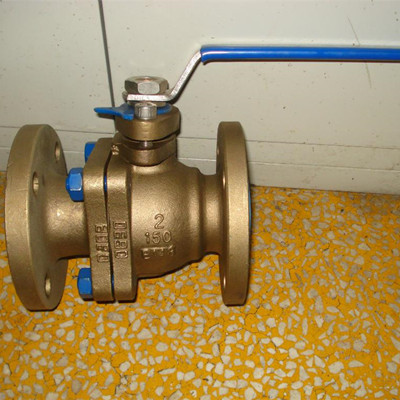

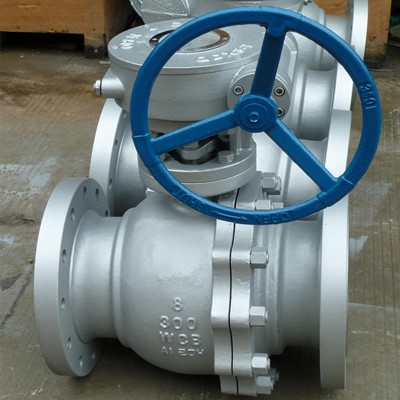

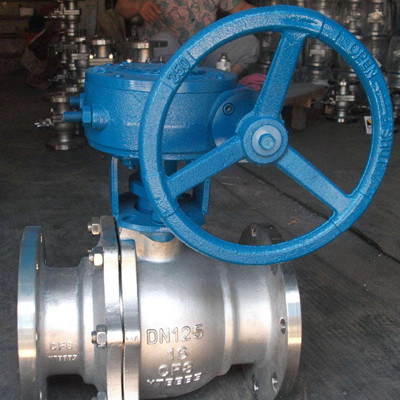

PipesTec Ball Valves are a high performance solution to your industrial Ball Valve needs. PipesTec Ball Valves are available in sizes ranging from ¼” to 80” in materials such as Carbon Steel, Stainless Steel, Brass, Forged Steel, Cast Steel and Cast Iron. PipesTec Ball Valves are also available in 2 Way or 3 Way configurations and are available in L Port and T Port flow patterns. Available end connections of the ball valve include Threaded, Socket Weld, Butt Weld and Flanged. Your Special Ball Valve and other Industrial Valves requirements are also available to inquire.
Mainly Ball Valve Dimensions & Features:
ANSI Ball Valve: Class 150LB - 2500LB SIZE 1/2" - 48"
DIN Ball Valve: DN50 - DN600, PN16 - PN160
JIS Ball Valve: DN50 - DN600 10K - 63K
BS Ball Valve: DN50 - DN350, PN16 - PN40
Ball Valve Materials:
WCB, LCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M, A105, LF2, F11, F22, F5, F304, F316, F304L, F316L
Design & Manufacture Standards:
API 6D,API600, ASME B16.34, JISB2071, JISB2073, JISB2083, BS 1873, BS1414
Face to Face Standards:
ASME B16.10, DIN 3202, BS2080, API 6D, JISB2002
End Connection Standards:
ASME B16.11, ASME B1.20.1, ASME B16.5, DIN2543-2550, JISB2212 - JISB2214
Ball Valve Test Standards:
API 598, API 6D, JIS B2003, ISO 5208, BS 6755, DIN 3230, EN 12266
